Description
Are you a smart lighting enthusiast?, kickstarting your journey into the world of automation? or a DIY person ? Do you want things your own way with flexibility and freedom? Then this product is for you!!

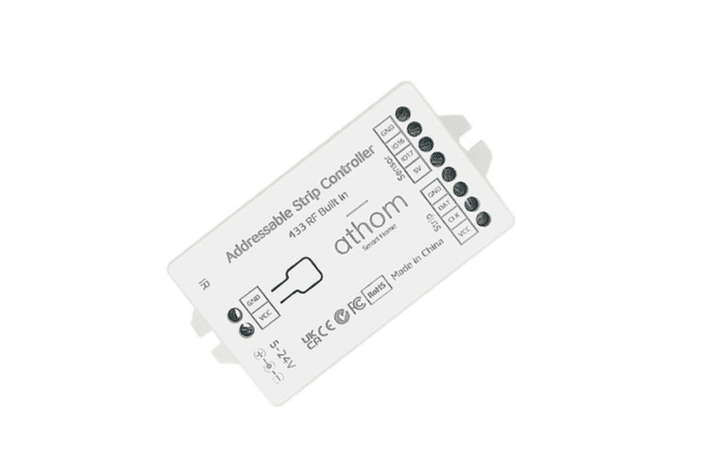

The Athom WLED ESP32 RF433 Music Addressable LED Strip Controller is a device designed to control addressable LED strips, providing dynamic lighting effects and responsive patterns to music or ambient sounds. The controller is equipped with an ESP32 microcontroller, RF433 communication capabilities, and features the popular WLED (Wireless LED) firmware for easy configuration.
It offers a versatile solution for users seeking a feature-rich, customizable LED lighting experience. It provides users with a wide range of options for controlling and personalizing their addressable LED strips, creating dynamic lighting effects that synchronize with music or ambient sounds. The device’s integration capabilities with smart home systems further enhance its usability within a connected home environment.
Key Features:
- Brand: Athom

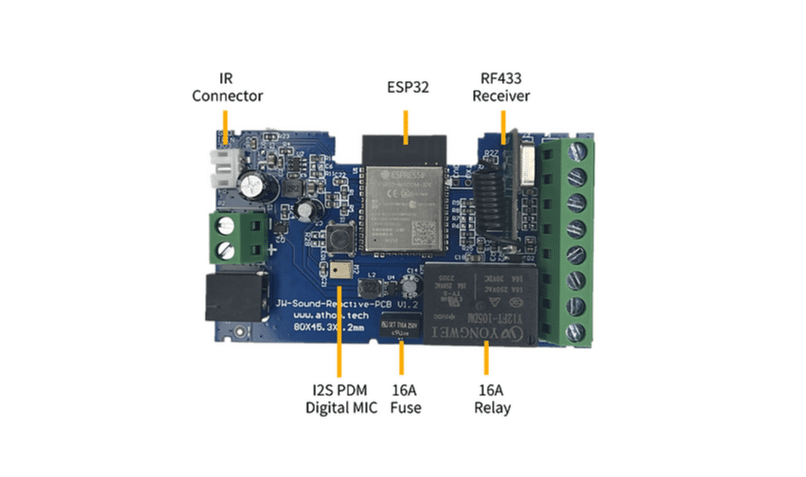

- ESP32 Microcontroller: The ESP32 is a powerful microcontroller that supports Wi-Fi and Bluetooth connectivity, making it suitable for controlling LED strips wirelessly and enabling integration with other smart home devices.
- RF433 Communication: The RF433 capability allows the controller to communicate wirelessly with other devices or remotes operating on the 433MHz frequency, providing additional control options.
- Music Responsiveness: The controller is designed to sync LED lighting effects with music or ambient sounds. This feature enhances the visual experience, creating dynamic light shows that respond to the audio environment.
- Addressable LED Strip Support: The controller is compatible with addressable LED strips, such as WS2812B or SK6812, allowing for individual control of each LED in the strip. This enables the creation of intricate and customizable lighting patterns.
- WLED Firmware: The use of WLED firmware simplifies the configuration process. WLED is an open-source project that provides a web-based user interface for controlling LED strips. Users can configure various settings, upload custom effects, and manage the LED strip through a web browser.

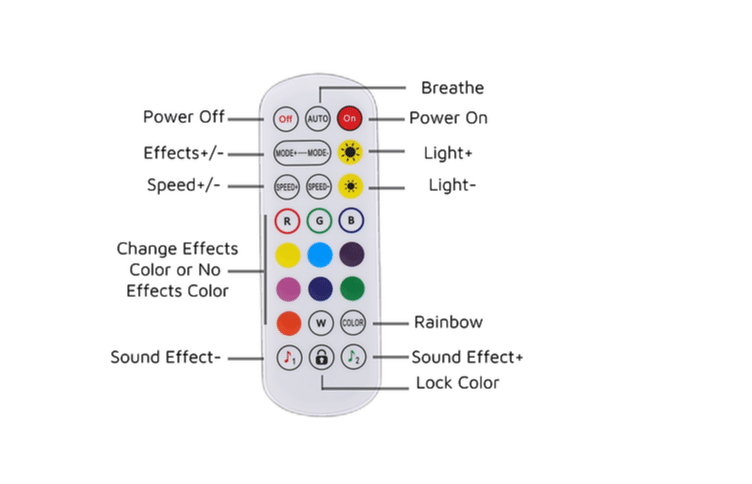

- Remote Control: In addition to web-based control, the controller comes with a physical remote for basic operations, and the RF433 capability allows for remote control from compatible devices.
3. Installation and Setup:
- Power Supply: The controller typically requires a stable power supply to operate the LED strip. The voltage and current specifications may vary based on the LED strip used.
- Wi-Fi Connection: The ESP32 allows the controller to connect to a local Wi-Fi network, facilitating communication with other smart home devices and enabling remote control through the WLED web interface.

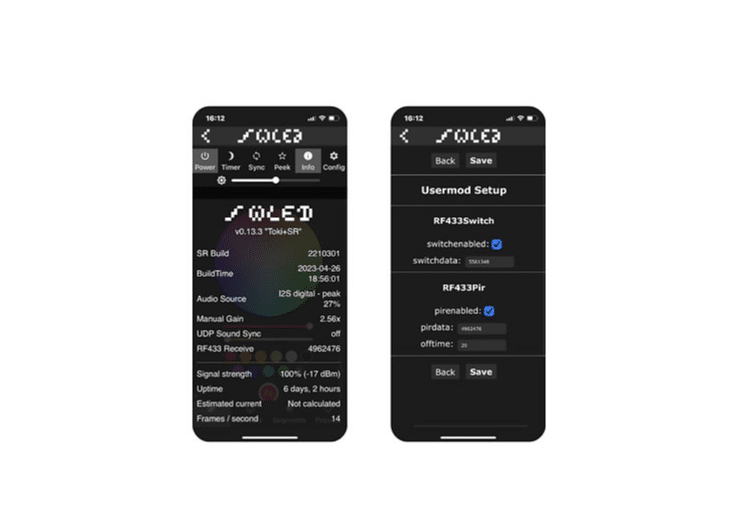

- Configuration through Web Interface: Users can access the WLED web interface through a browser to configure settings, select lighting effects, and customize the LED strip behavior.
- Music Sync Setup: The controller may offer options for configuring the sensitivity and responsiveness of the music synchronization feature to achieve optimal results based on the audio environment.
4. Integration with Smart Home Systems:
- Home Automation Compatibility: The controller may be compatible with popular smart home platforms, such as Home Assistant or OpenHAB, allowing for seamless integration into existing smart home setups.
- Voice Control: Depending on integration capabilities, users may control the LED strip using voice commands through voice assistants like Amazon Alexa or Google Assistant.
5. User Experience:
- User-Friendly Interface: The WLED web interface is designed to be user-friendly, enabling both beginners and enthusiasts to easily customize and control their LED strips.
- Regular Firmware Updates: Firmware updates may be provided to enhance features, improve performance, and address any security vulnerabilities.
6. Compatible LED Strips: WS2812B WS2811 WS2813 WS2815 SK6812 TM1814
